KAPATA Products

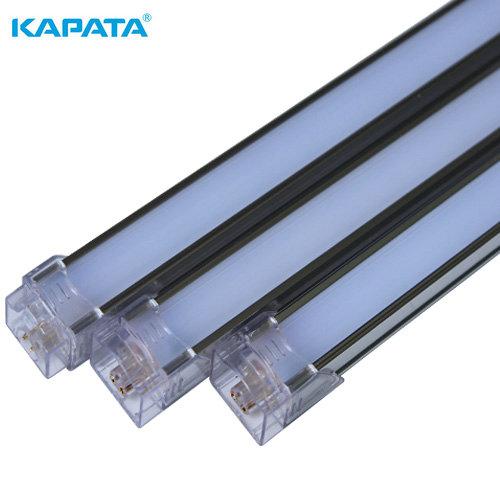

1160MM 18W led freezer bar light

Model No.︰KPT-PB10-18-M
Brand Name︰KAPATA
Country of Origin︰China
Unit Price︰US $ 6 / pc
Minimum Order︰2 pc
Share on:

 Total 3 Related Items
123Next

Product Description



Rated power

18W

Power Consumption

18±1W

Input voltage

DC24V

LED quantity

162 PCS

LED source

Epistar

Lamp casing

Milky/PC

LED Luminous Efficiency

60-70lm/W

LED Luminous Flux

1190lm

Luminaire Efficiency

>85%

Illumination Uniformity

>0.8

Correlated Color Temperature

2700K-7000K

Color Rendering Index

Ra≥80

Beam Angle

                                                            120º

Degree of Protection

IP40

Operating Ambient Temperature

-40℃~50℃

Storage Ambient Temperature

-40℃~50℃(30℃ is the best

Lamp Operating Temperature

Ambient Temperature

The Radiator Surface of the Lamp Body

LED Lights Pin

25℃

45℃

50℃



CE、RoHS

Certificate

50000H

lifespan

As specified in the product dimension drawings

Dimensions

0.24kg



Profresh Bakery:

1.Profresh for bread have a concentrated in yellowish part.

2.Truthful color rendering does not disturb the natural colors of the products.

3.Reduced warm up of goods illuminated.


Production Reliability



NO.

Item

Test methods

Through the standard

1

Temperature rise test

Ambient Temperature of 25, the lamp surface temperature below 65
LED temperature below 75

Ambient Temperature of 25, the lamp surface temperature below 65,
LED temperature below 75

2

High temperature and pressure test

Ambient temperature of 60, enter the 1.1times rated voltage, light work 24hours

Lighting to work properly after the test

3

Low temperature and pressure test

Ambient temperature of -15, enter the 0.9 times rated voltage, light work 24hours

Lighting to work properly after the test

4

Vibration tests

Vibration velocity is set to 300rev/min, the amplitude is set to 2.54 cm,
six surface vibration test on the packaged product.

The lamps can not occur off parts, structural damaged, the lighting
does not shine and other anomalies.

5

Impact test at room temperature

Ambient temperature of 25, lighting 30s, lighting -30s, circulation 10,000

The lamps can not occur leakage,not lit and electrical anomalies

6

Life test

Ambient temperature of 25 ° C, lit test, the first three months every
10 days, testing, optical parameters, three months after a month
testing the optical parameters, 70% of the initial luminous flux for the life of the product,
turn off the lights for the absolute life

Luminous flux for 90% of the initial luminous flux of 3000 hours, 30,000 hours
of luminous flux should be greater than 70% of the initial luminous flux




Product Feature
1.With easy connector (you can connect bar to bar directly, by connection wire is ok also)
2.
KAPATA patented clip, with magnet and 180 degree adjustable, meet different direction lighting
and save a lot of money for installation and maintenace.

3.Different sizes,different colours are ok. For housing,we can do it with clear or milky cover.
4.We use super bright Epistar SMD3014.
5.Use Meanwell driver from Taiwan.
6.The main use the good thermal conductivity of aluminum(AL6063) , has good heat dissipation.

7.The LED Solution Can Save Electricity Up To 70%.

8.  Details:  0.3M item: 300*20*15.3MM  36pcs     SMD3014    DC24V
                     0.6M item: 600*20*15.3MM  78pcs     SMD3014     DC24V
                     0.9M item: 900*20*15.3MM  120pcs   SMD3014     DC24V
                     1.2M item:1200*20*15.3MM  162pcs  SMD3014     DC24V














Price Terms︰EXW or FOB shenzhen
Payment Terms︰T/T,Western Union,Paypal
Packing︰1230*290*300mm,100PCS/Carton,G.W:34.5KG
Lead Time︰5--7 Business days
Light Source︰Epistar chip from taiwan
Warranty ︰3 years
Product Image
